Everything You Need To Know About CNC Machining
CNC machining is a manufacturing technology that uses computer control to produce precision parts across industries like aerospace and medical devices. If you’d like to learn more about CNC machining, you’ve come to the right place. In this guide, we’ll explain everything you need to know about CNC machining, from how it works to its advantages over traditional methods and its diverse applications.
Introduction to CNC Machining
Computer numerical control (CNC) machining is a manufacturing process that uses computerized controls to operate tools with exceptional precision. Unlike manual machining, CNC systems follow pre-programmed instructions to guide tools along specific paths. The process begins with computer-aided design (CAD) software creating part specifications, which computer-aided manufacturing (CAM) software converts into precise codes, such as G-code. These codes direct the CNC machine’s tool movements, cutting speeds, and operation sequences, ensuring consistent and accurate results with minimal human error.
CNC machining includes operations like milling, turning, drilling, and grinding, removing material from raw stock—such as metal, plastic, ceramic, or composite—to produce parts with exact tolerances. Modern CNC systems achieve micron-level precision, making them best for applications requiring extreme accuracy and consistency.

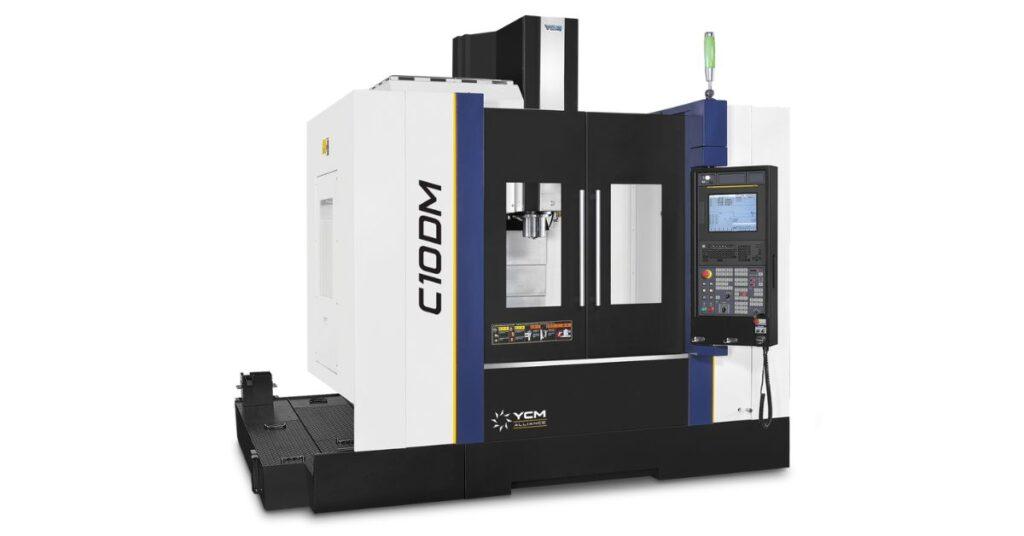

CNC Machine Components
Many components and systems work in harmony to create a fully functioning CNC machine. CNC machines include a machine frame, spindle system, linear motion systems, and control system.
Machine Frame
The machine frame provides the structural rigidity necessary to maintain accuracy during high-force cutting operations. Modern frames are cast iron or welded steel and include thermal stability features to reduce dimensional changes during operation.
Spindle System
Housing the cutting tools and providing rotational motion at controlled speeds is the spindle system. High-performance spindles can reach speeds exceeding 20,000 RPM while maintaining exceptional accuracy. Advanced designs incorporate thermal compensation systems and vibration-damping technologies for consistent performance across varying conditions.
Linear Motion Systems
The CNC machine’s linear motion systems control the positioning of tools along multiple axes. Three-axis machines provide movement along the X, Y, and Z axes, while five-axis systems add rotational capabilities around two additional axes. Ball screws or linear motors drive these movements with micron accuracy.
Control System
The brain of the CNC machine is the control system, which interprets G-code instructions and coordinates all machine functions. Modern controllers feature powerful processors capable of executing complex calculations and managing multiple simultaneous operations. User interfaces provide operators with real-time status updates and diagnostic information.
The CNC Machining Process
1. Part Design and Program Development
CNC machining begins with part design and program development. Engineers create detailed CAD models that define exact dimensions, surface finishes, and material properties. These digital models form the foundation for all subsequent manufacturing steps.
2. Toolpath Generation With CAM Software
CAM software analyzes the part geometry and generates optimal toolpaths for efficient material removal. Programmers select the appropriate cutting tools, set cutting parameters, and develop workholding strategies. The software simulates the entire machining process, identifying potential collisions or inefficiencies before starting production.
3. Machine Setup
To set up the machine for operations requires installing the correct cutting tools, positioning workpieces in fixtures, and establishing coordinate systems. Operators verify the program's accuracy through test runs or simulation software to confirm that all movements occur safely. Tool length measurements and workpiece datum establishment complete the setup.
4. Production Execution
Upon completing the setup, production begins automatically following the programmed sequence. The control system manages spindle rotation, tool changes, coolant flow, and axis movements as per the program. Operators monitor the process and adjust when necessary to maintain quality.
5. Quality Control
Throughout production, quality control verifies the meeting of dimensional accuracy and surface finish requirements. Quality control experts measure and confirm that the final product adheres to specified standards for a high-quality outcome.

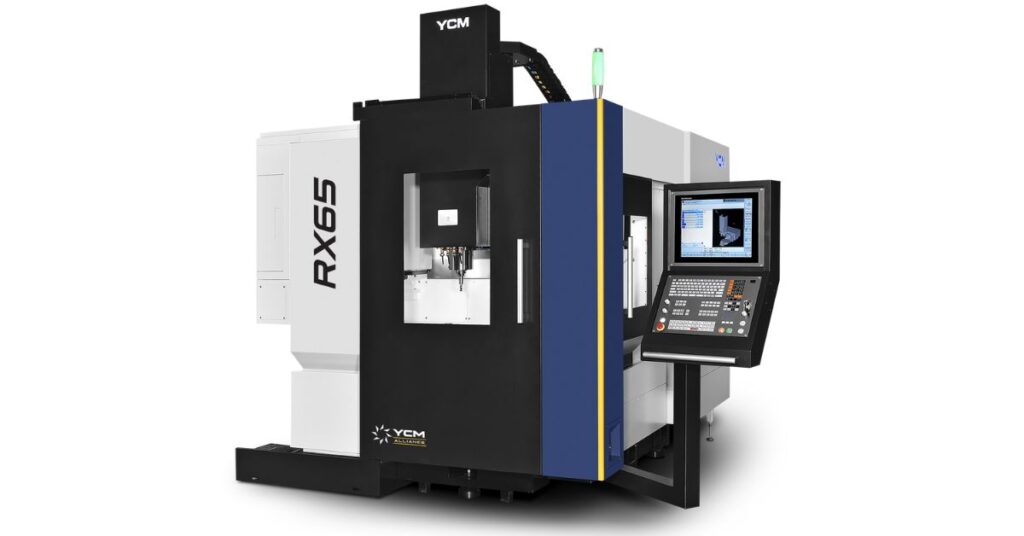

Types of CNC Machining Operations
Another thing you need to know about CNC machining is the different types of machining operations. CNC machining processes include milling, turning, drilling, and grinding.
Milling Operations
Milling is the most common CNC machining process. It utilizes rotating cutting tools to remove material from stationary workpieces. Tools such as end mills, face mills, and cutters create complex geometries, including pockets, slots, and contoured surfaces. Advanced multi-axis milling capabilities produce intricate parts that would require multiple setups on conventional machines.
Turning Operations
CNC lathes perform turning operations to machine cylindrical parts. In this process, the workpiece rotates while cutting tools move along linear axes to create both external and internal features. Many CNC turning centers feature live tooling capabilities, enabling the execution of milling operations on the same machine for complete part processing.
Drilling and Boring Operations
CNC machining can also create precise holes with specific dimensions and surface finishes through drilling and boring. CNC machining centers employ various strategies, such as peck drilling for deep holes and interpolation techniques for large-diameter features. Boring operations achieve tight tolerances on hole dimensions and concentricity requirements.
Grinding Operations
Grinding provides superior surface finishes and exceptional dimensional accuracy, particularly for critical applications. CNC grinding machines automatically control wheel positioning and feed rates, delivering surface finishes that are precise to the microinch. These operations constitute the final processing step for high-precision components.
Benefits of Using CNC Machining
CNC machining offers exceptional precision and repeatability, consistently achieving tolerances within ±0.0001 inches to meet the demands of industries like aerospace and medical. Computer-controlled movements make this high-level accuracy possible and eliminate human error for consistent cutting conditions. CNC machines also maximize production efficiency by operating continuously with minimal supervision. Automated features like tool changes, programmable coolant systems, and adaptive controls optimize cutting parameters, reducing cycle times while maintaining consistent quality.
Another key advantage of CNC machining is its flexibility, allowing machines to transition quickly between different part configurations through programmable changes. This supports lean manufacturing principles, reduces inventory, and accelerates prototype development.
Limitations and Challenges of CNC Machining
The primary barrier to CNC adoption is the high initial investment, with significant costs for advanced multi-axis systems, tooling, fixtures, and software. However, the long-term benefits of precision, efficiency, and scalability far outweigh these concerns.
CNC machines are also highly advanced, which require skilled operators to program and operate them correctly. This means that companies investing in CNC technology must also invest in employee training or hire experienced professionals, adding to their overhead costs.
Applications of CNC Machining
CNC machining serves a wide range of industries. In aerospace, it produces vital components like aircraft engine parts and landing gear with tight tolerances and reliable performance. Automotive industries rely on CNC machining for engine, transmission, and suspension parts, ensuring consistent quality across high-volume production. The medical sector also benefits from CNC precision for surgical instruments, implants, and diagnostic equipment, meeting strict biocompatibility and safety standards.
Specific examples highlight CNC machining's versatility and capabilities. Turbine blades for aerospace require complex curves and tight tolerances, achieved through five-axis CNC systems. Medical manufacturers machine medical implants, such as titanium hip replacements, for durability, accurate fit, and surface texturing that supports bone integration.
Maximizing Manufacturing Excellence Through CNC Technology
CNC machining is the cornerstone of precision manufacturing, offering accuracy, repeatability, and flexibility for producing complex components across industries like aerospace and medical. If you need a machine tool dealer that specializes in CNC machines, YCM Alliance can help! For custom solutions and expert support, partner with YCM Alliance to unlock the full potential of CNC machining for your business.
